AR

PlayCanvas lets you create Augmented Reality (AR) applications for mobile and HMD devices through the WebXR API, as well as through integrations with popular AR frameworks.

対応プラットフォーム

AR capabilities are available using the Android Chrome Browser, Meta Quest Browser, Magic Leap Helio, Samsung Internet, Microsoft Edge and many others. Additionally, frameworks such as 8th Wall and Zappar allow users to experience AR content in most mobile browsers, including Safari.

注記

The aforementioned frameworks are external and have separate licensing, available on their respective websites.

WebXR ARの開始

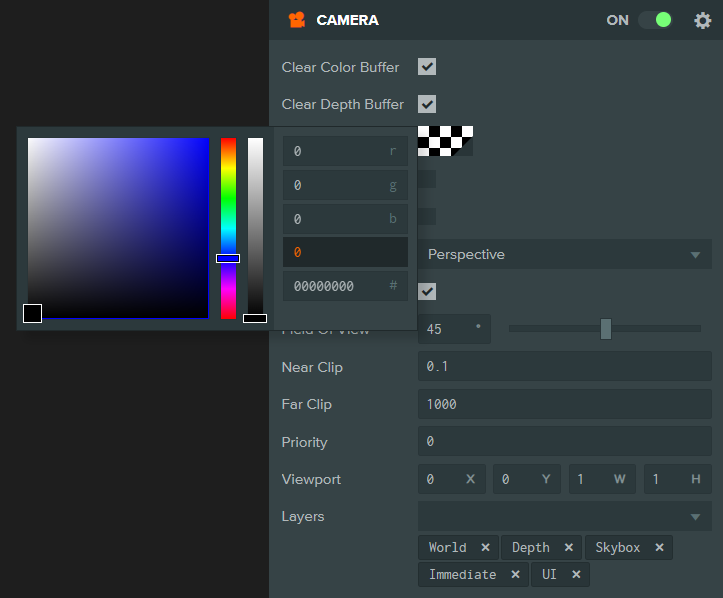

PlayCanvasの組み込みARサポートを使用する場合、シーンの主要カメラのクリアカラーは透明でなければなりません。以下のようになります。

ARセッションを開始するには、デバイスのサポートと利用可能性をまず確認する必要があります。その後、ユーザーの操作(ボタンクリックなど)に応じて、ARセッションを開始できます。

button.element.on('click', function () {
    // check if XR is supported and AR is available
    if (app.xr.supported && app.xr.isAvailable(pc.XRTYPE_AR)) {
        // start AR using a camera component
        entity.camera.startXr(pc.XRTYPE_AR, pc.XRSPACE_LOCALFLOOR);
    }
});

Once the user is done, the AR session can be exited by calling:

app.xr.end();

Augmented Reality allows blending of the real world with virtual imagery, either by composing a rendered buffer over the camera feed or with a special projection of a rendered buffer on see-through glasses. Usually, it is provided with spatial tracking relative to the real-world environment.

Suitable reference space: pc.XRSPACE_LOCALFLOOR.

スターターキット

PlayCanvas provides several ‘Starter Kit’ projects to help you and your AR experiences get up and running faster. When creating a new project, simply select from the dialog the template that suits you best.
