Collision

By default, splats in the viewer have no physical presence — the camera flies right through them. The Collision section in Studio attaches a voxel representation of the scene to your splat so the viewer can collide against it. With collision attached, your splat becomes walkable — visitors can navigate it on foot rather than just orbit around it. The Explore page also surfaces walkable scenes via its walkable feature filter.

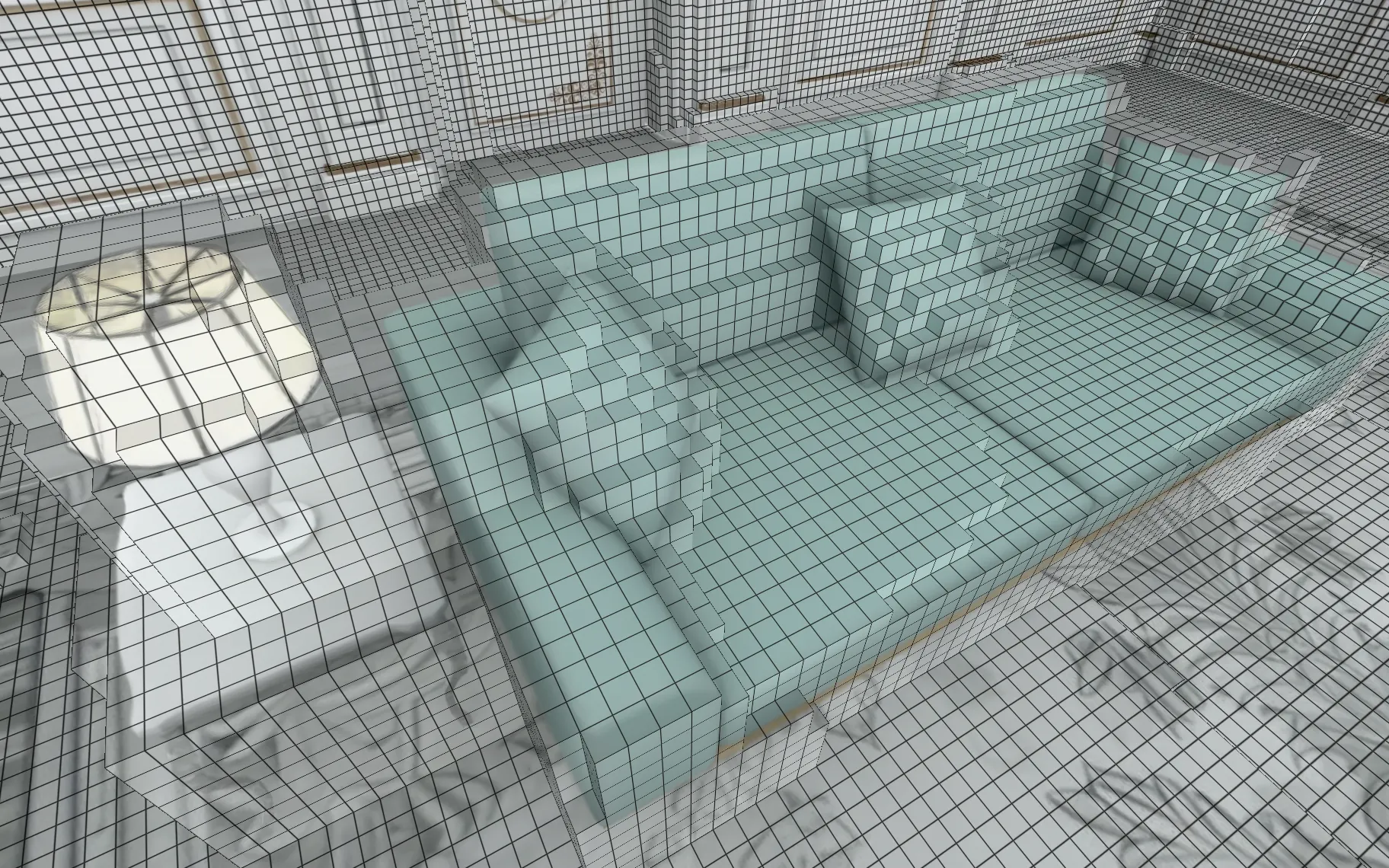

What is voxel collision?

A voxel collision asset is a coarse, low-resolution box-based reconstruction of the splat — the surfaces visitors can stand on, lean against, or be stopped by. It's separate from the splat itself so it can be optimized independently for runtime physics rather than visual quality.

You'll typically generate it once per scene and re-generate only if the underlying splat changes significantly.

Uploading voxel collision

The simplest path is to upload pre-generated voxel files:

1. Open the Scene Assets section.
2. Click the Voxel upload action.
3. Drop in the pair of files that describe the collision — a JSON file plus a binary file alongside it.
4. Wait for the upload state indicator to reach Complete.

State	Meaning
Uploading	The collision files are being sent to the platform.
Complete	The voxel asset is live; the scene is now walkable on the next viewer reload.
Error	Upload failed — re-check the files and try again.

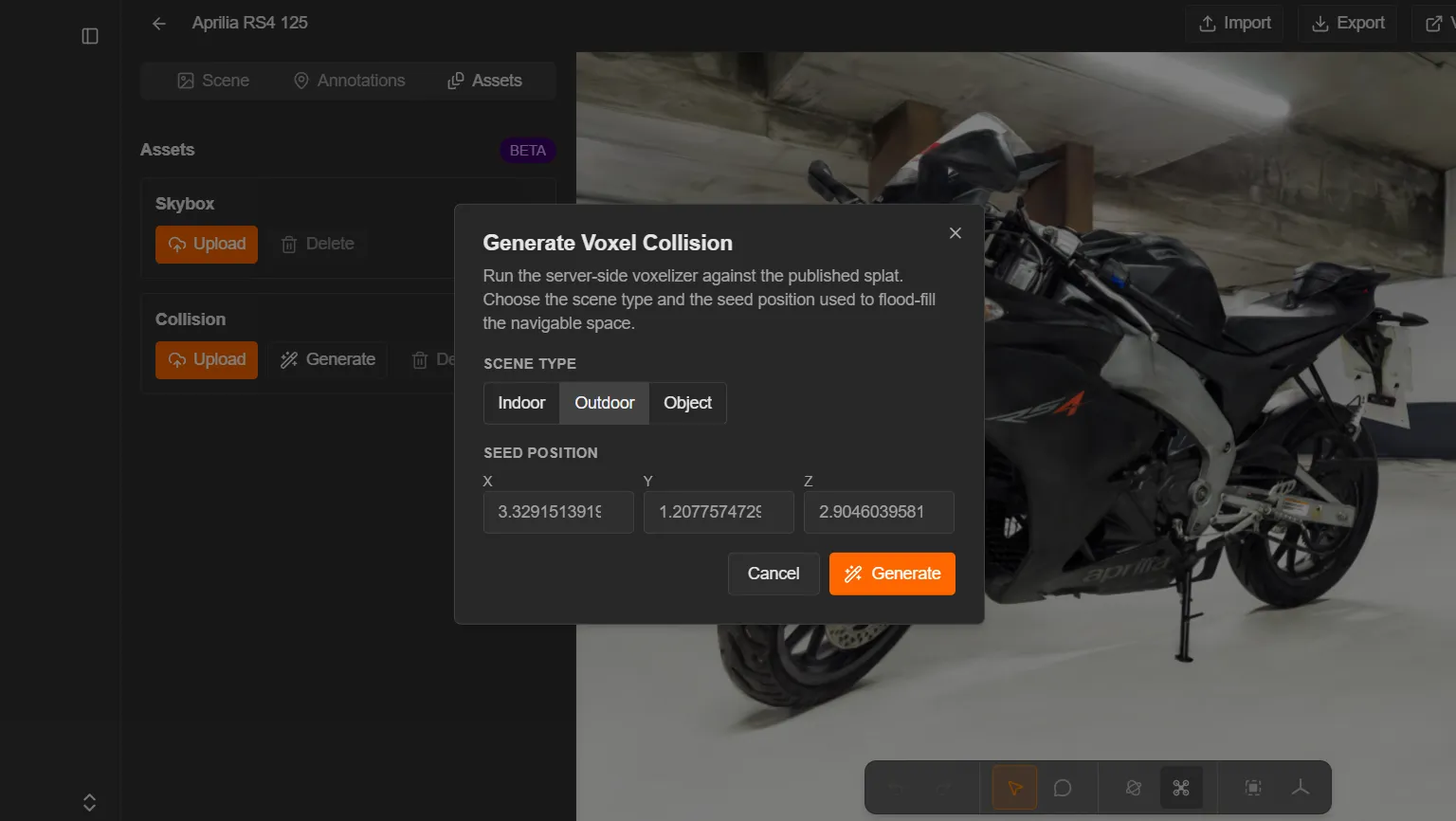

Generating voxel collision

You can generate voxel collision from your splat without leaving the browser using the Convert utility. Pick Voxel Collision Bundle (.voxel.zip) as the output format and tune:

• Voxel resolution (default 0.05) — smaller values capture finer surfaces but produce larger, slower assets.
• Opacity cutoff (default 0.1) — voxels with opacity above this threshold are considered solid.

The Convert utility downloads a .voxel.zip containing the JSON+BIN pair, which you then upload through Studio's Voxel section as above.

For scripted or batch generation, the splat-transform CLI exposes the same generation under its voxel.zip output target.

When a scene is walkable

Once a voxel asset is attached, visitors viewing the scene get walk controls instead of pure orbit. The viewer also sets the walkable flag on the scene, which:

• Surfaces a walkable badge on the scene page.
• Includes the scene in Explore results when the walkable feature filter is on.

See also

• Convert — generate voxel collision in the browser
• splat-transform — generate voxel collision in a script or build pipeline
• Experience Settings — the JSON contract that stores scene-asset references
