Timeline

The Timeline panel allows you to create camera animations for your Gaussian Splat scenes. You can set keyframes to define camera positions and movements, creating smooth animated transitions that can be played back in the editor.

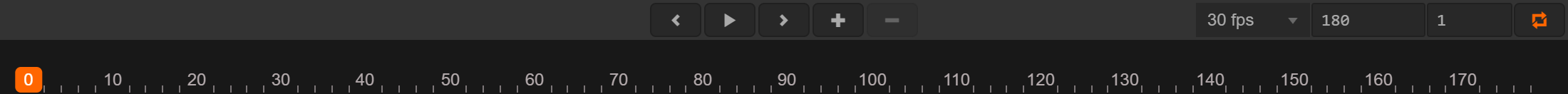

Timeline Controls

The Timeline panel includes the following controls:

• Play/Stop button - Play or stop the animation playback
• Previous/Next Frame buttons - Step one frame backward or forward. Hold Shift while clicking to jump to the previous or next keyframe instead
• Add Key button (+) - Create a new keyframe at the current timeline position
• Remove Key button (-) - Delete the keyframe at the current playhead position
• Timeline slider - Scrub through the animation by dragging the playhead (which displays the current frame number)
• FPS setting - Set the frames per second for the animation
• Timeline length - Set the total duration of the animation in frames
• Smoothness - Adjust the interpolation smoothness between keyframes (0-1)
• Loop toggle - Control whether the camera path loops. When enabled (the default), the animation wraps smoothly from the last keyframe back to the first; when disabled, the camera comes to rest on the last keyframe. See Animation Looping

Keyboard Shortcuts

The timeline can also be driven from the keyboard:

Key	Action
Space	Play/pause the animation
, / .	Step to the previous/next frame
< / >	Jump to the previous/next keyframe
Enter	Add a keyframe at the current frame
Shift + Enter	Remove the keyframe at the current frame
Ctrl + T (or Cmd + T on Mac)	Toggle the Timeline panel

Creating Keyframes

To create a camera animation keyframe:

1. Position the timeline playhead at the desired frame (by clicking on the timeline or using the frame counter)
2. Move and orient the viewport camera to the desired position
3. Click the + (Add Keyframe) button on the Timeline (or press Enter)

The keyframe will appear as a yellow diamond on the timeline at the current frame position. Keyframes store the camera's position and rotation at that moment in time.

Importing Camera Poses as Keyframes

SuperSplat can import camera poses from COLMAP reconstructions or INRIA camera pose JSON files to automatically create timeline keyframes. This allows you to recreate the approximate camera path used during the original capture of a Gaussian Splat scene.

COLMAP images.txt

To import COLMAP poses:

1. Obtain the images.txt file from your COLMAP reconstruction output
2. In SuperSplat, select File > Import (or drag and drop the images.txt file)
3. SuperSplat will create keyframes from the camera poses in the file

Each camera pose in the images.txt file will be placed as a keyframe on sequential frames of the timeline, in the order they appear in the file. This creates an animation that follows the original capture path.

note

The images.txt file contains camera poses expressed as quaternions and translation vectors in COLMAP's coordinate system. SuperSplat automatically converts these to the appropriate camera positions and orientations for the timeline.

INRIA Camera Pose JSON

SuperSplat also accepts a .json file containing an array of INRIA camera entries. Each entry must contain position and rotation; it can also include id or img_name for ordering and fx, fy, width, and height for calculating the field of view.

Import the file using File > Import or drag it onto the Editor. SuperSplat sorts entries by id, or by a trailing number in img_name, and creates a keyframe for each entry. Use a filename other than meta.json, which SuperSplat reserves for unbundled SOG scenes.

Editing Keyframes

Once keyframes are created, you can modify them in the following ways:

Changing Keyframe Timing

Click and drag the yellow diamond keyframes along the timeline to adjust when each camera position occurs in your animation.

Copying Keyframes

Hold Shift and drag a keyframe to copy it instead of moving it. A clone of the keyframe follows the pointer while you drag, and a copy is created at the frame where you release, leaving the original keyframe in place.

Updating Camera Position/Rotation

To change the camera position or rotation stored in an existing keyframe:

1. Move the playhead to the frame containing the keyframe you want to update
2. Adjust the viewport camera to the new desired position and rotation
3. Click the + (Add Key) button - this will overwrite the existing keyframe with the updated camera values

Alternatively, hold Ctrl and click a keyframe diamond to overwrite it with the current view directly - no need to move the playhead first.

Deleting Keyframes

To delete a keyframe:

1. Move the playhead to the frame containing the keyframe you want to delete
2. Click the - (Remove Key) button (or press Shift + Enter)

note

All keyframe operations - adding, moving, copying, and removing - can be undone with Ctrl + Z (or Cmd + Z on Mac) and redone with Ctrl + Shift + Z (or Cmd + Shift + Z on Mac).

Visualizing Keyframe Cameras

To see where your keyframes place the camera in 3D space, enable the Show Cameras toggle in the Settings panel (the gear icon in the Right Toolbar). A wireframe camera gizmo is drawn in the viewport at each keyframe's stored position and orientation, making it easy to review your camera path at a glance. The state of the toggle is saved with your project.

Configuring Timeline Settings

Frames Per Second (FPS)

The FPS setting controls the playback speed of your animation. Available FPS values are:

• 1 FPS - Very slow, single frame per second
• 6 FPS - Low frame rate
• 12 FPS - Medium frame rate
• 24 FPS - Standard film frame rate
• 30 FPS - Common video frame rate
• 60 FPS - Smooth, high frame rate playback

Timeline Length

You can set the total duration of your animation by adjusting the timeline length setting. This defines how many frames your animation spans and determines when the animation loops back to the beginning.

If you shorten the timeline so that existing keyframes fall past its end, SuperSplat preserves those keyframes but excludes them from playback and interpolation. Their dimmed, error-colored markers are pinned just beyond the right edge of the timeline, and a tooltip identifies each keyframe's original frame number.

To bring an out-of-range keyframe back into the animation, drag its pinned marker onto the timeline or increase Total Frames until the keyframe is in range again. Shortening the timeline also clamps the playhead to the new end, and previous/next keyframe navigation skips any out-of-range keys. To delete one of these keyframes, first drag it into range or temporarily increase Total Frames.

Smoothness

The Smoothness setting controls how the camera interpolates between keyframes. This value ranges from 0 to 1:

• 0 - Linear interpolation, creating direct straight-line motion between keyframes
• 1 - Maximum smooth interpolation, creating more curved, cinematic camera movements
• Values in between - Blend between linear and smooth interpolation

Adjusting smoothness allows you to control the feel of your camera animation, from mechanical and precise to flowing and organic.

Playing Animations

Use the play button (or press Space) to preview your animation. The camera will interpolate between keyframes based on your smoothness setting, creating fluid motion. With the Loop toggle enabled (the default), the animation loops continuously, wrapping from the last keyframe back to the first.

Animation Looping

The Loop toggle on the Timeline (next to the smoothness setting) controls what happens after the camera passes the final keyframe:

• Loop enabled (default) - The camera path forms a closed loop: after the last keyframe, the camera smoothly interpolates back to the first keyframe over the remaining frames of the timeline
• Loop disabled - The camera path stays open: the camera comes to rest on the last keyframe and holds that pose

The state of the Loop toggle is saved with your project, and the camera path drawn by the Show Cameras toggle updates to show a closed or open curve accordingly.

When looping is enabled, it's important to avoid setting a keyframe on both the first and last frames of the timeline, as this will cause a sudden snap when the animation loops.

Best Practice for Smooth Loops

Instead of placing keyframes on both the first and last frames, place your final keyframe before the last frame and let the animation interpolate smoothly back to the beginning.

For example, with a 100-frame timeline:

• Good: Set keyframes at frames 0, 10, 20, 30, 40, 50, 60, 70, 80, 90
  • The animation smoothly interpolates from frame 90 back to frame 0
• Avoid: Setting keyframes at frames 0, 10, 20, ... 90, 100
  • This causes a snap/jerk when looping from frame 100 back to frame 0

This technique allows the camera to smoothly transition from your last keyframe back to the starting position, creating a seamless loop.

Publishing and Playback on the Scene Page

The Timeline animation lives in your SuperSplat project. To make it play for visitors, publish the splat with the publish dialog's Animation toggle enabled. This bakes the keyframed camera path into the published scene and sets it to play on load. The dialog's Loop Mode option is initialized from the Timeline's Loop toggle - Repeat if looping is enabled, None if not - and controls whether the published animation plays once or loops in the viewer.

On the scene page, the open-source SuperSplat Viewer auto-plays the track when a visitor opens the scene. Depending on the track's loop mode it either plays once and stops or loops continuously — a repeat loop turns the splat into a hands-off cinematic flythrough.

note

Camera animation tracks are authored here in the Editor Timeline — not in SuperSplat Studio, which only curates cameras, annotations, post effects, skybox, and collision. For how animation is stored in the published settings — the animTracks array (each track's loopMode, interpolation, and keyframes) plus the scene-level startMode — see Experience Settings.

Saving Timeline Animations

important

Timeline animations are only preserved when you save your project as an .ssproj file. The timeline configuration is not saved when exporting to PLY or other splat formats.

See Managing Projects for more information on saving and loading SuperSplat project files.
