Interface Overview

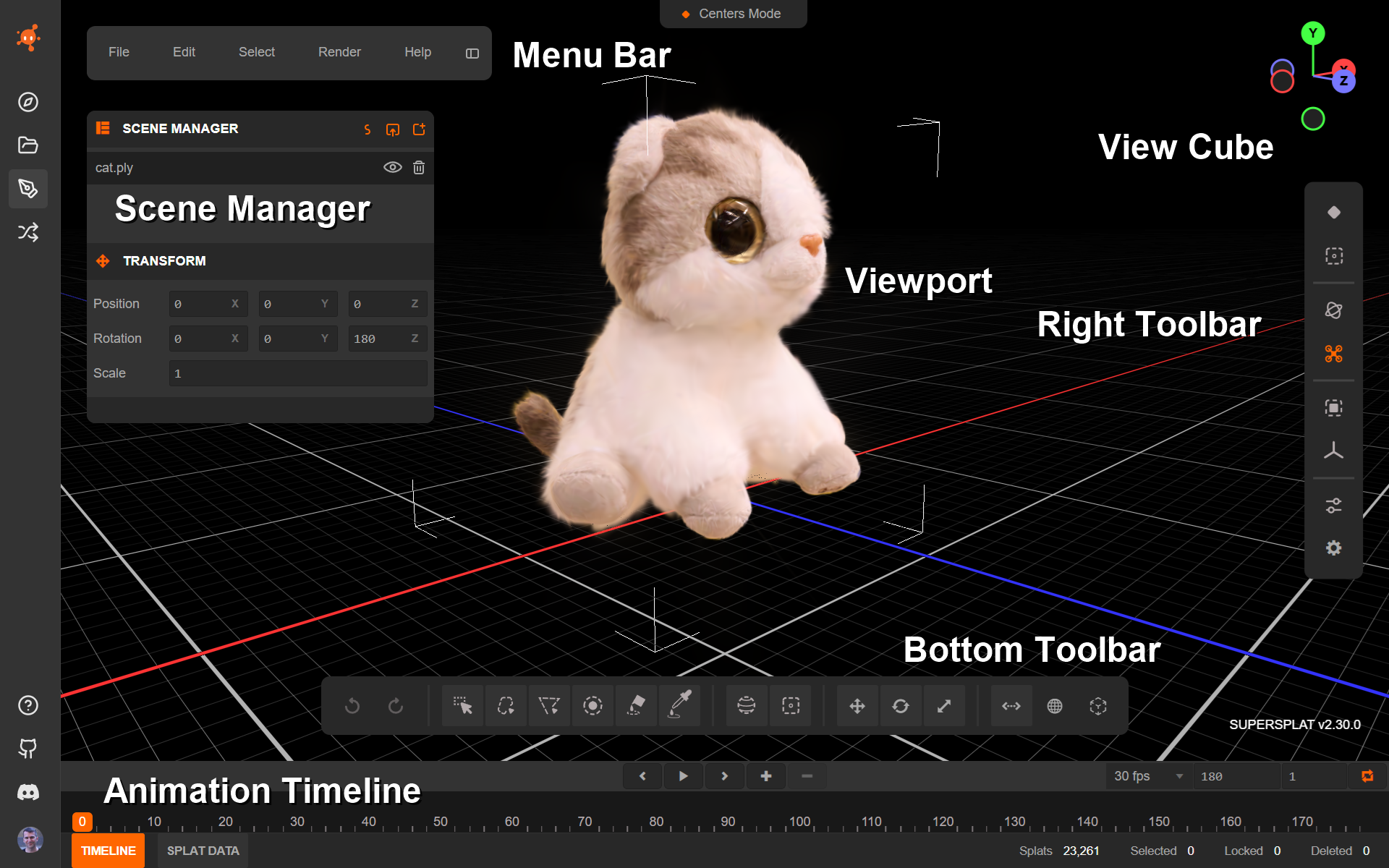

The SuperSplat Editor's interface appears as follows:

supersplat-interface

Interface Elements​

The key elements of the interface are labeled:

The Menu Bar gives you access to the most commonly used functions in the SuperSplat Editor.

  • File Menu: Load and save your projects. Import and export to/from popular file formats.
  • Edit Menu: Undo or redo changes, or duplicate or separate selected Gaussians into a new splat.
  • Select Menu: Perform common selection based operations on your loaded scene.
  • Render Menu: Render an image or a video of your currently loaded scene.
  • Help Menu: Access developer resources related to SuperSplat.

Scene Manager​

The Scene Manager lists the imported splats in the project. Click a row to choose the active splat, use the eye icons or Solo mode to control visibility, and use the panel below it for precise transforms. See Managing Splats for the complete workflow.

Viewport​

The 3D viewport where you can visually edit your scenes. The viewport has a 2D grid to help orient yourself in the scene. By default, the grid lies in the XZ plane (with the world Y axis pointing upwards). The X axis is colored red and the Z axis is blue. Major grid divisions occur at 1 meter intervals (and smaller grid divisions are at 10cm intervals).

View Cube​

The View Cube is a gizmo that gives added control over the viewport camera. You can click on any of the circles to switch to an orthographic view of the scene from one of six directions. This can make it easier to make accurate selections in certain circumstances.

Right Toolbar​

This vertical toolbar contains icons related to splat visualization, camera controls and application settings.

Bottom Toolbar​

This horizontal toolbar contains undo and redo, Gaussian selection tools, Move, Rotate, Scale, Measure, coordinate-space and pivot controls. See Selection and Cleanup and Transform, Measure and Align.

Animation Timeline​

The Timeline allows you to create and delete keyframes for the viewport camera. It also allows you to play back (or scrub through) the animation you have configured.

Histogram Panel​

This panel allows you to inspect the Gaussian data in your scenes, visualized as a histogram along with a set of numerical statistics. See the Splat Data panel.

Settings and Preferences​

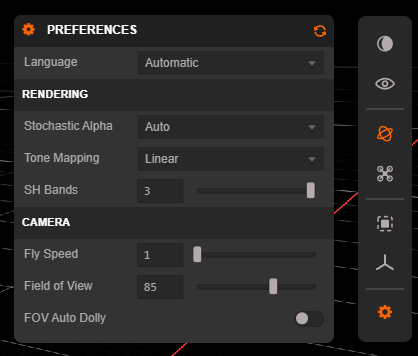

Open the Settings panel from the gear icon in the Right Toolbar. Changes to view, camera, and editing preferences are saved in your browser and restored the next time you open the Editor. These preferences include colors and tonemapping, camera field of view and control mode, spherical harmonic bands, centers and rings display, grid and bounds overlays, and other viewport options.

Loading an .ssproj project applies the view and camera settings saved in that project for the current session without replacing your stored preferences. Selecting File > New reapplies your preferences. To clear them and restore the factory settings, click Reset to Defaults at the bottom of the Settings panel. This also returns the interface language to Automatic.

Language​

SuperSplat's interface is available in several languages. By default it follows your browser's language — the Automatic setting — but you can choose a specific language from the Language dropdown at the top of the Settings panel (the gear icon in the Right Toolbar).

Switching language takes effect immediately. There is no page reload, so your loaded scene and any unsaved work are preserved. Your choice is remembered across sessions until you change it again or switch back to Automatic.

The following languages are supported:

  • English — en
  • Deutsch (German) — de
  • Español (Spanish) — es
  • Français (French) — fr
  • 日本語 (Japanese) — ja
  • 한국어 (Korean) — ko
  • Português (Brasil) (Brazilian Portuguese) — pt-BR
  • Русский (Russian) — ru
  • 中文 (简体) (Simplified Chinese) — zh-CN
Share a link in a specific language

Add a ?lng= query parameter set to one of the language codes listed above (for example, ?lng=ja) to pin the language for a shared link. This overrides both your saved choice and the browser default, so the link always opens in that language.

Missing your language?

SuperSplat is open source, and its translations are plain JSON files under static/locales. Open an issue to request a new language, or open a pull request adding or improving a locale file.
